Vendalen manganese-antimony project

Teako’s 100% owned Vendalen project covers 18 km² and is part of the Eikland Base Metals District in the Tokke Municipality, Telemark, known to host Cu, Zn, Pb, Mo, Mn, Ag, and Au. The district has a long mining history, with past producers including Åmdals Copper Mine, the Bandaksli Cu-Mo Mines, and Dalen Mo Mines, with mineralization still potentially unexploited².

The geology is dominated by the Bandak Group (~1.16 Ga), with volcanic and sedimentary rocks, including quartzites and mafic to felsic lava flows, and minor Seljord and Rjukan Group rocks. The Sveconorwegian Orogeny (~1140–960 Ma) produced widespread folding, faulting, and late-stage granitic intrusions (‌Laajoki et al, 2002).

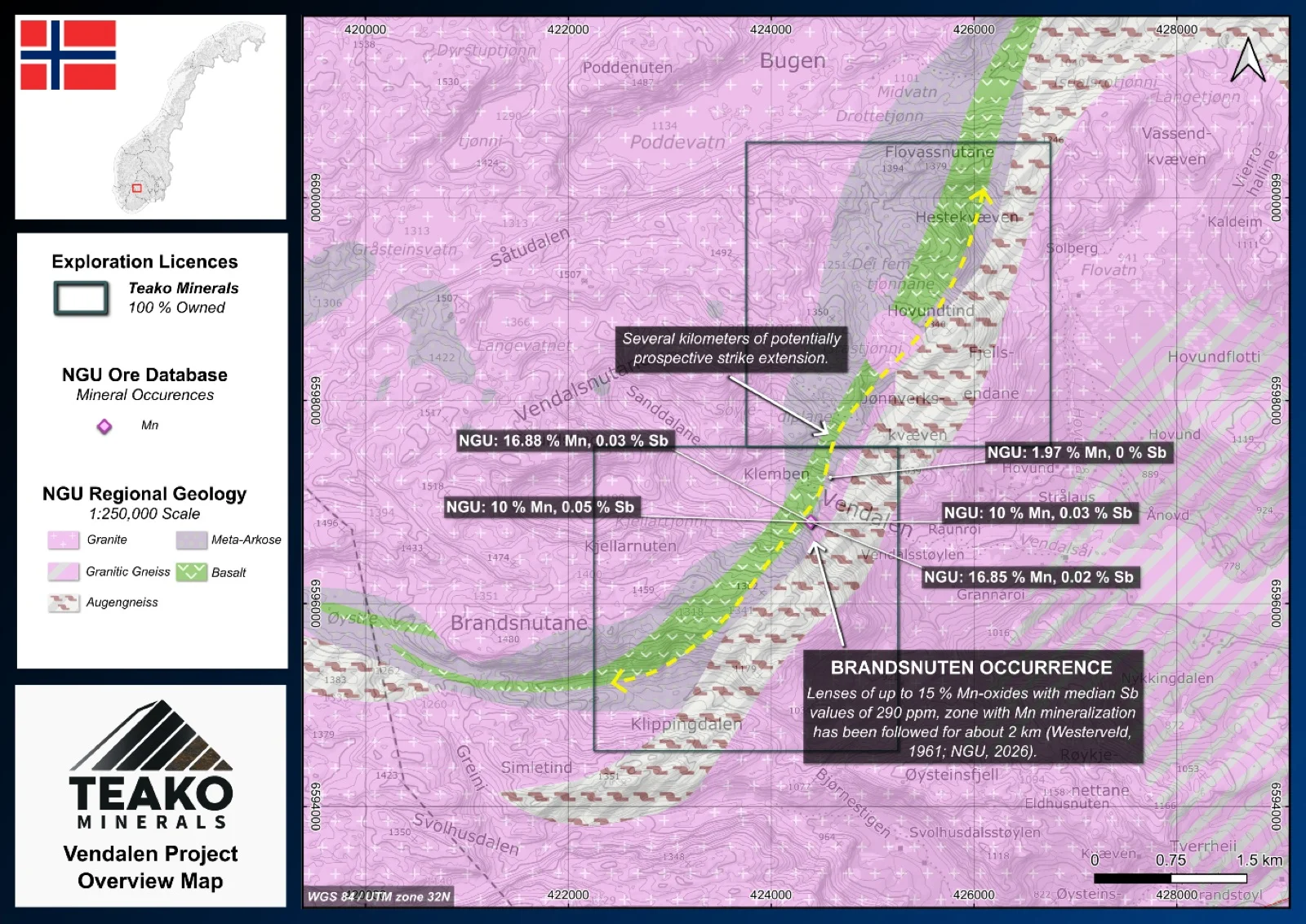

The Vendalen target area, at the western edge of the district, hosts the Brandsnuten manganese occurrence (discovered 1846). Mineralization occurs as lenses of manganese oxides and silicates, with grades up to 15 % Mn¹. The lenses are up to 1.5 m wide and 15–20 m long, and the mineralized zone extends about 2 km. NGU data reports an average antimony value of 290 ppm, significantly above background¹. The Vendalen project is among the most promising targets in the Eikland district, due to its documented manganese and antimony grades and potential for undiscovered mineralization at depth, exploration of Vendalen would encompass high-density geochemical and high-resolution geophysical surveys (EM, magnetic, or IP) with targets developed from this to test the depth extensions of the known mineralization.

{{fig:1}}

¹Teako has not performed sufficient work to verify the published data reported above, but the Company believes this information to be considered reliable and relevant. Results reported are maximum values and may not be representative of all samples collected within the area being evaluated

²References made to nearby mines and analogous deposits provide context for the regional targets but are not necessarily indicative that these targets host similar tonnages or grades of mineralization.

References

‌Laajoki, K., Corfu, F. & Andersen (2002), T.: Lithostratigraphy and U-Pb geochronology of the Telemark supracrustals in the Bandak-Sauland area, Tele mark, South Norway. Norsk Geologisk Tidsskrift, Vol. 82, pp. 119-138. Trondheim 2002, ISSN 029-196X.

Westerveld, J (1961) The manganese vein of Mount Brandnuten, Botnedal, South Norway. NGU Series 213.

References to the ‘NGU’ regard the ‘Norwegian Geological Survey’, in particular, their Resource Database and are consolidated under this citation for simplicity. For all data sourced from this resource, please refer to: https://geo.ngu.no/kart/mineralressurser_mobil/?lang=eng
